Blinds-Between-Glass | ⅞” Insulated Glass (IG) Panel for Windows
Our ⅞” insulated glass panel with built-in blinds fits in single- and double-hung windows and is available with the EasyGlide operator to control light and privacy into your home. Cordless operation ensures no dangling cords, and enclosed blinds don’t collect dust or get caught and bent overtime.

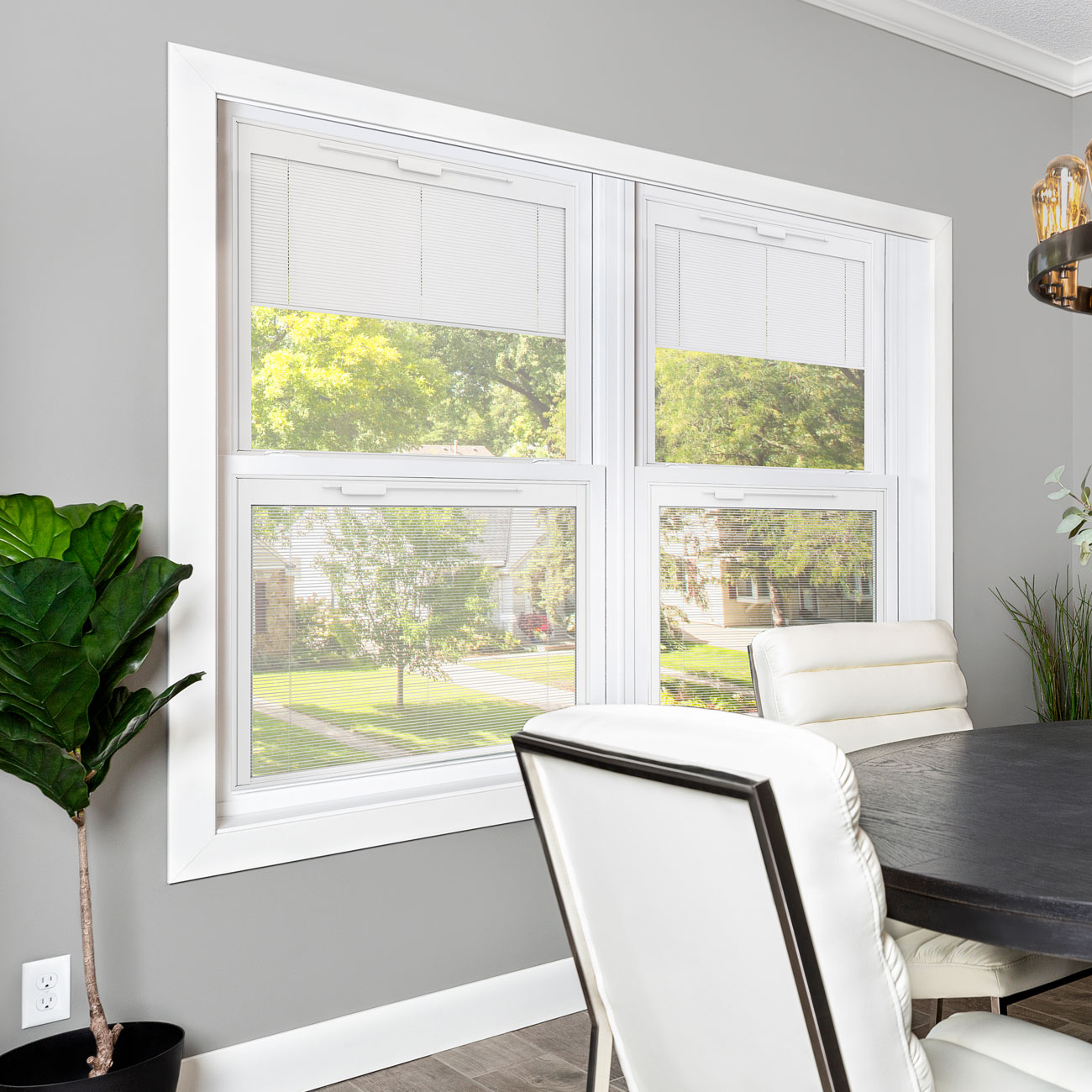

View more product examples in the Blink Inspiration Gallery.
Blink blinds and components are color coordinated.

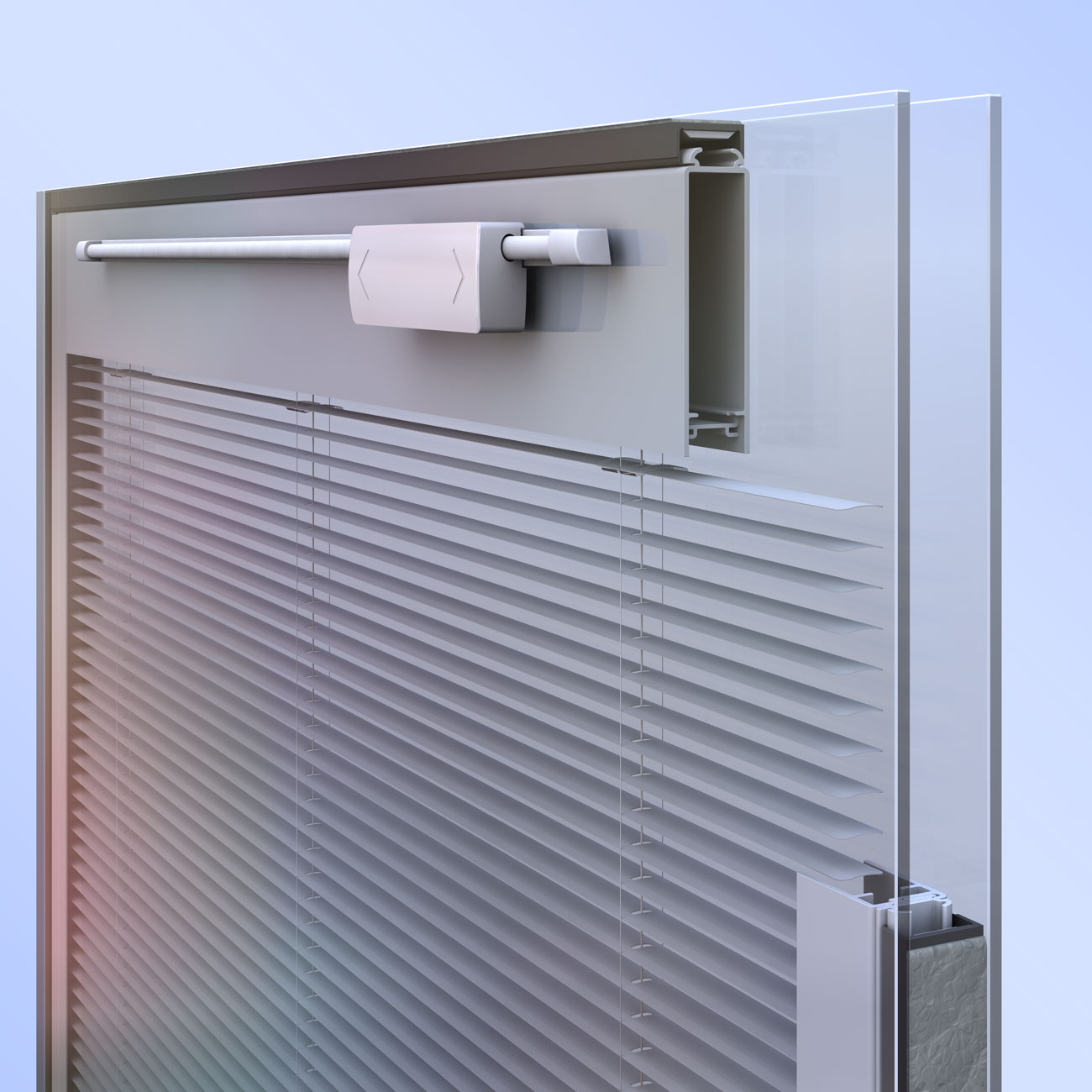

Understand how Blink blinds-between-glass works with a cut-away diagram of an IG panel.
Blink Blinds + Glass are virtually maintenance-free. View how-to videos for care and maintenance or troubleshooting tips.
Need to download technical drawings, specifications, or literature? Visit the Blink downloads library.
Ready to order? Find your local window dealer and ask about window lead times.
Blind Options
Blink's Raise/Lower/Tilt (RLT-Top) for windows is the perfect option for single- and double-hung windows. This product is the perfect complement to our 1 inch Blink design to meet all of your window needs. Review optimal window styles to find where Blink will fit in your home while providing you all of the peace-of-mind that all of our Blink programs offer.

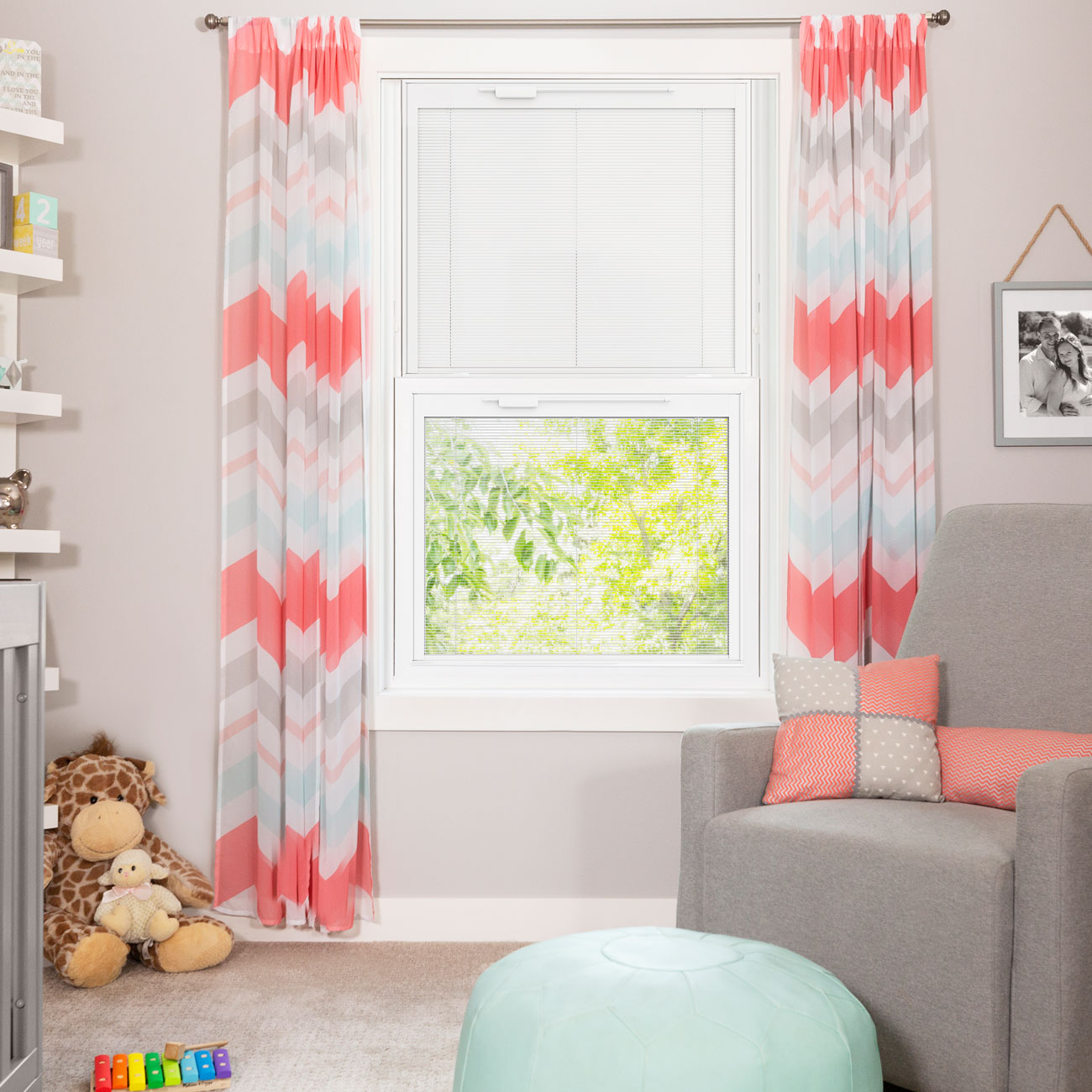

View more product examples in the Blink Inspiration Gallery.
Blink blinds and components are color coordinated.
Understand how Blink blinds-between-glass works with a cut-away diagram of an IG panel.
Blink Blinds + Glass are virtually maintenance-free. View how-to videos for care and maintenance or troubleshooting tips.
Need to download technical drawings, specifications, or literature? Visit the Blink downloads library.
Ready to order? Find your local window dealer and ask about window lead times.
Blind Options
Blink's Raise/Lower/Tilt (RLT-Top) for windows is the perfect option for single- and double-hung windows. This product is the perfect complement to our 1 inch Blink design to meet all of your window needs. Review optimal window styles to find where Blink will fit in your home while providing you all of the peace-of-mind that all of our Blink programs offer.
Specifications
BLINK RLT–TOP |
|
---|---|
IG panel sizes | 15"–54" wide* 12"–41" tall* (*in 1/16" increments) 7/8" thick |
Sq ft max | 9 sq ft |
Glass types | Tempered & Annealed: up to 9 sq ft (no more than 36" in one direction) (single operator) |
Low-E options | Single: 270, 272, 340, 366 Dual: I89/270, I89/272, I89/340, I89/366 |
NEAT options | Single: 270, 366 Dual: I89/270, I89/366 |
Operator options | Operator position: top-center of IG Streamlined design: 0.512" thick ![]()
|
Colors (blinds & components are color coordinated) |

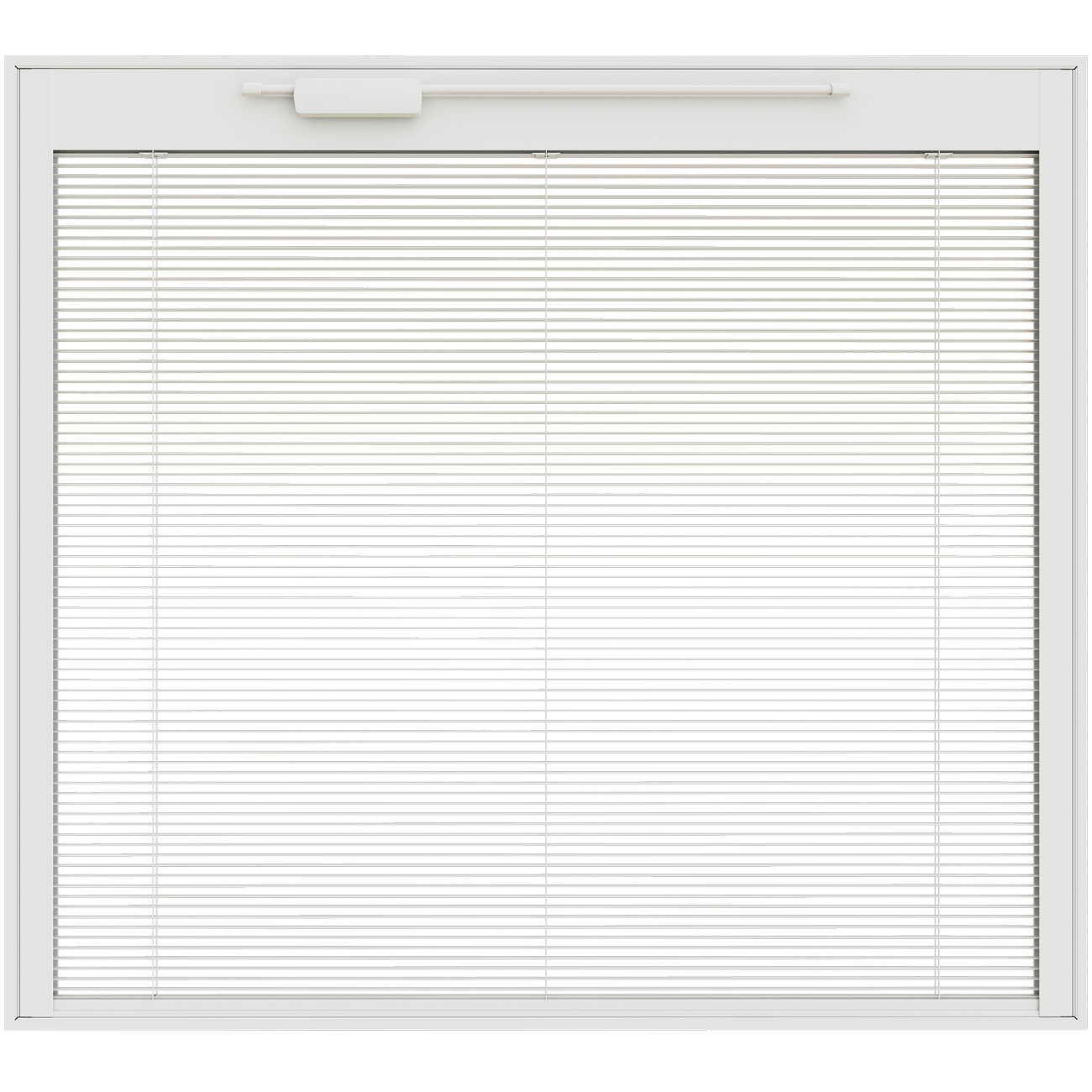

White |

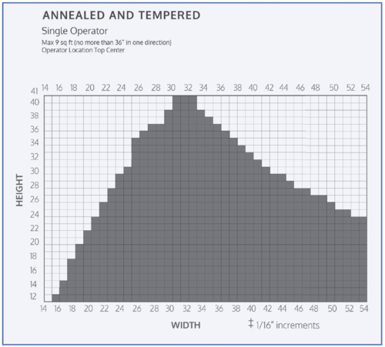

Size Charts |
Tempered & annealed glass

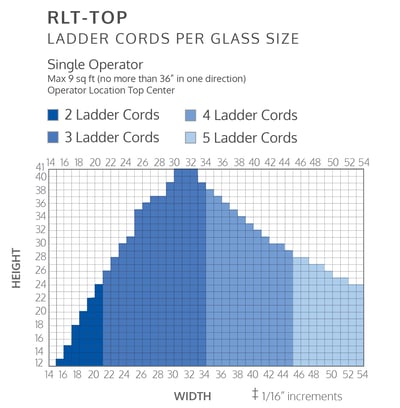

![]() Ladder cords
![]() |
Technical Information
Read more about:
Product Performance
Product Codes
Energy Efficiency & Thermal Performance
Safety Certifications
3-Part Specifications
Download design specifications:
Blink RLT-Top—Raise/Lower/Tilt
(767.9 KB) Adobe PDF
BLINK RLT-TOP |
|
---|---|
Minimum quantity | Low-E: 1 Clear/Clear: 1 |
Working days to deliver | Annealed US: 8 business days + transit Canada: 10-16 business days + transit Tempered US: 12 business days + transit Canada: 14-20 business days + transit |

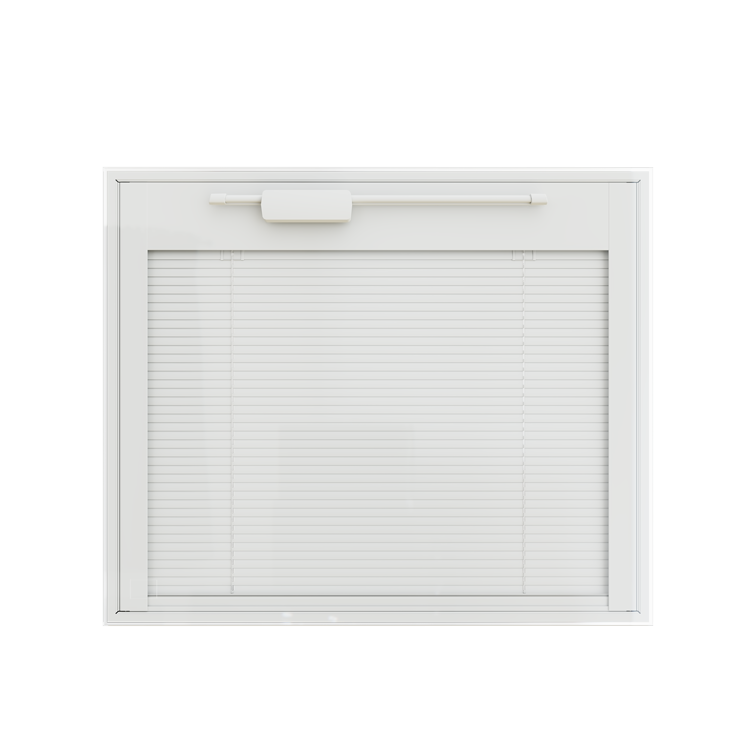

White

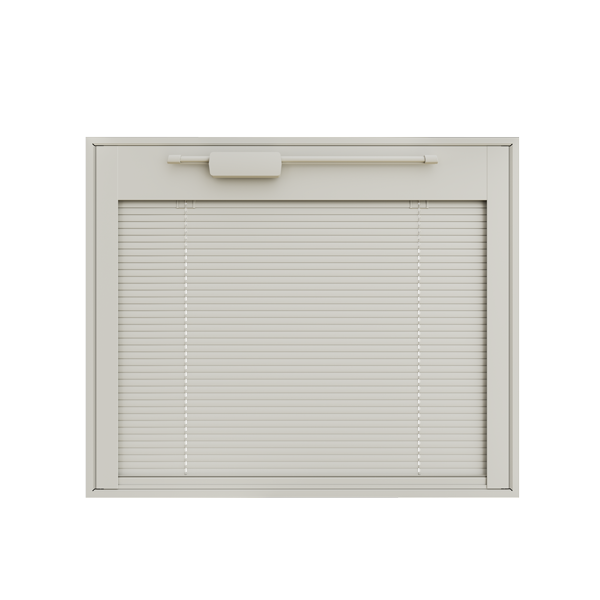

Sand

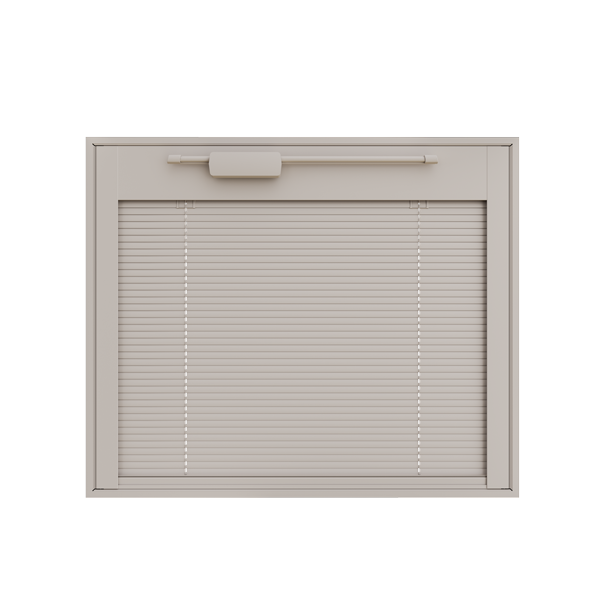

Tan

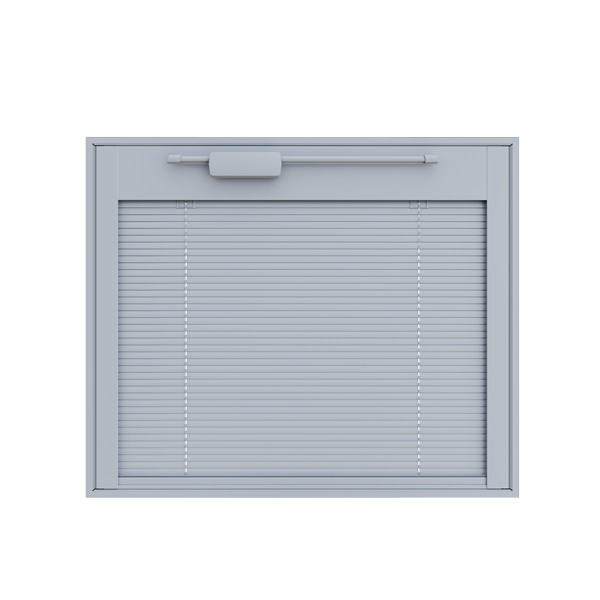

Silver Moon

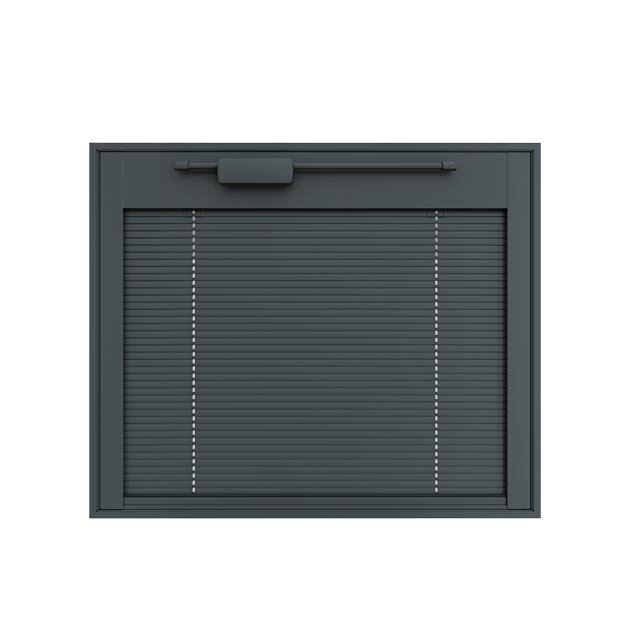

Slate Gray

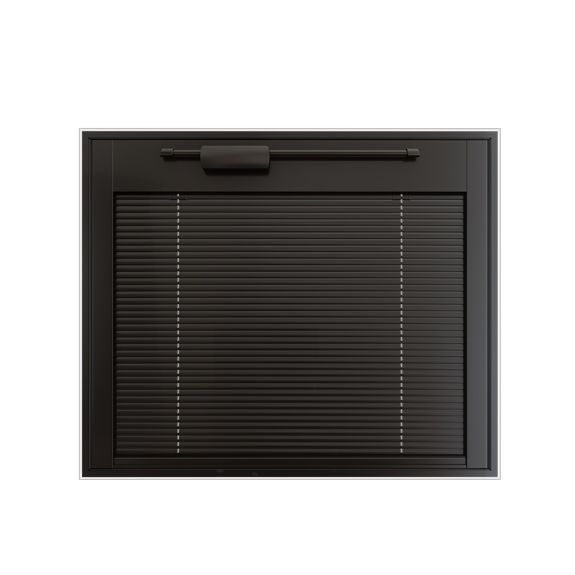

Espresso
What do we mean by raise/lower/tilt? Our RLT enclosed blinds are controlled with an ergonomic sliding operator that can be set to the perfect height and tilt for your light and privacy needs.
Click, hold, and drag the operator to see how it works.

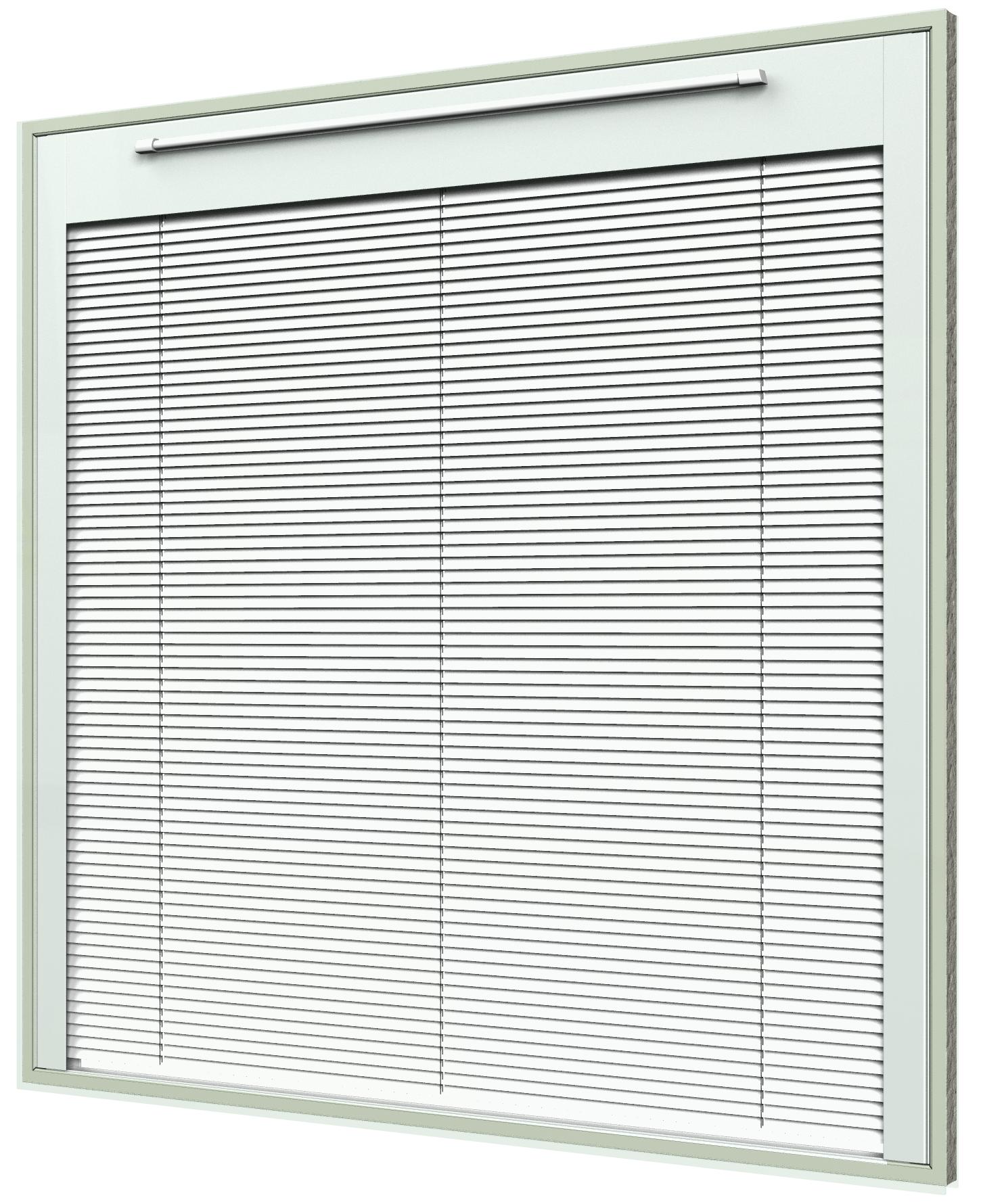

Slight movements up or down will control the tilt of the blinds. Then, you can continue to slide the operator along the track to raise or lower the blinds to your desired height.
